Sectional overhead door T-241BR

Door leaf constructed of steel sandwich panels with a core of 40mm polyurethane, sealed all round by means of triple rubber profiles and guided in a steel rail system.

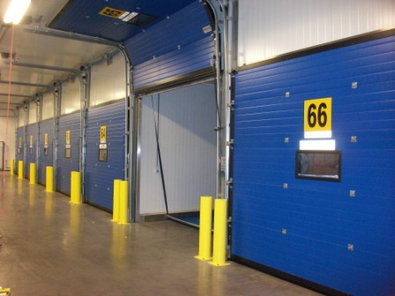

Banana Ripening doors

  • Due to multiple sealants, suitable for banana-ripening rooms.
  • Suitable almost everywhere.
  • Large selection of rail systems.

Technical Data

Construction: Door leaf constructed of sandwich panels, covered on both sides with 0,6mm galvanized and coated steelplate. Thermal bridge-free uitgevoerd.

Thickness: Door leaf40mm.

R-value: Panels approx. 2,1 (m².K/W).

Surface texture: Stucco exterior, smooth interior.

Colour of door leaf: Standard colour RAL 9002 (light grey). Door leaf finished in colour to be specified at additional price.

Glazing: Kick-out window in the door leaf.

Sealing: All round by means of triple rubber profiles.

Track: Fully galvanized steel guiding construction.

Rail system: Normal ceiling system (min. built-in clearance 450mm). High-, low- or vertical ceiling system at additional price.

Operation: Manually operated. Chain or electrical operation at additional price.

Safety: Spring and cable break safety device fitted as standard. Safety edge and slack cable safety device included with electrically operated option.

Locks: Bolt (manually operated). Locks at additional price.
