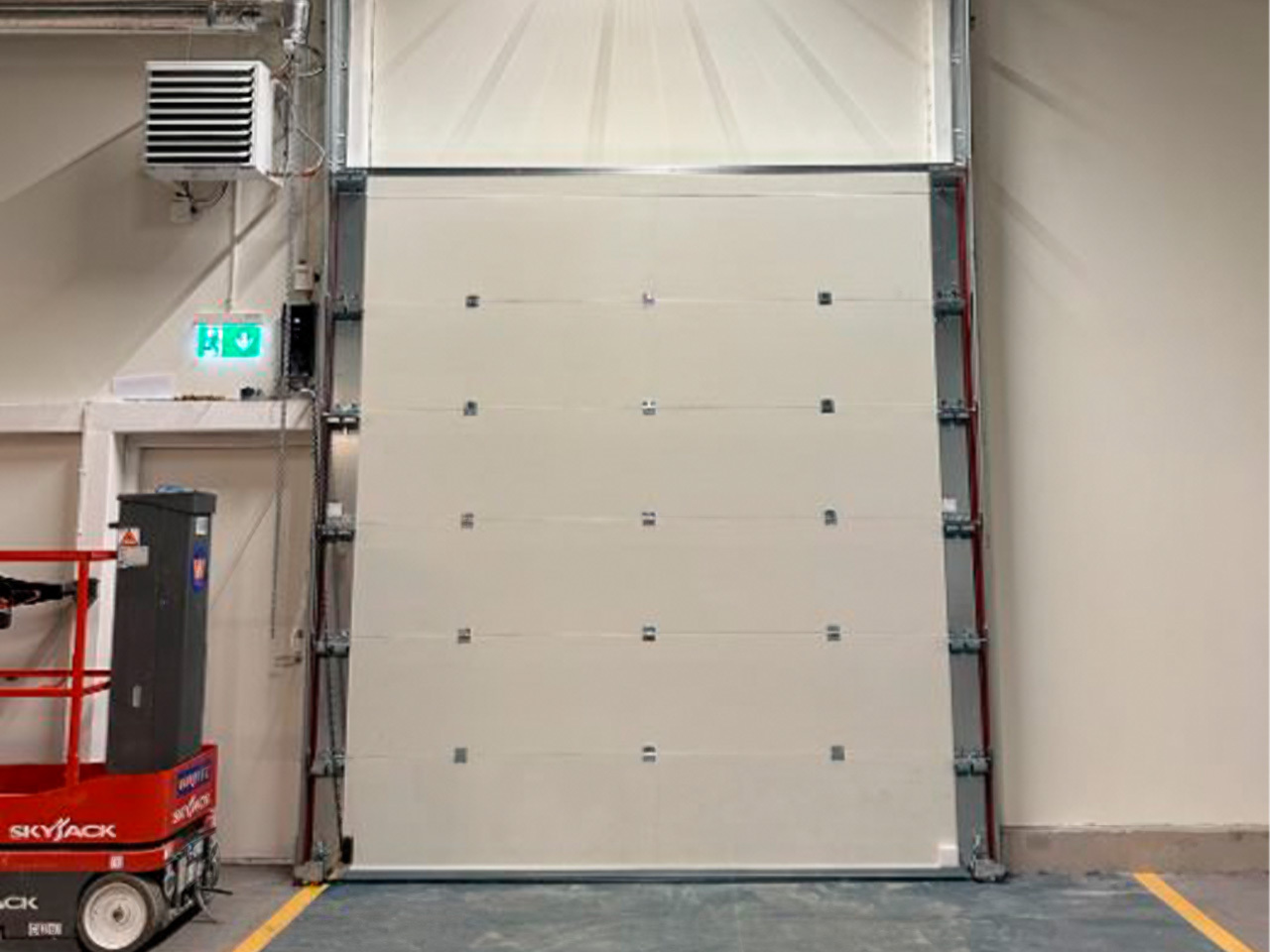

OHD-C Sprint fire rated high-speed doors provide fast, reliable protection while maintaining frequent use
Fire-rated High-speed Doors
Certification
- Tested in accordance with EN 1634-1
- Classified according to EN 13501-2
- Panels classified according to EN 13501-1, fire class B-s1, d0
- Validated endurance test: >300,000 cycles
- CE marked per EN 13241 and EN 16034
Application
- Designed to be basically always closed
- Suitable for indoor/indoor and indoor/outdoor environments
- Applicable in protected escape routes, not as primary escape doors
- Suitable for frequent use
- Mounting on wall/opening only
- Permissible mounting surfaces:
- Aerated concrete
- Sand-lime brick
- Concrete
- Masonry
- Fire-resistant steel construction
Construction & Standard Features
- Door Leaf: Fire-resistant composite panels, 42 mm thick, mixed white structure
- Operation: Box motor 400V with integrated safety catch and control box with frequency inverter
- Opening Speed: max ±1,000 mm/s
- Closing Speed: ±250 – ±1,000 mm/s
- Rail System: Fully vertical
- Safety: Set of light curtains
- Cycle Durability: Validated >300,000 cycles
At a glance
Fire Resistance & Maximum Dimensions
| Classification | Fire Resistance | Max Width | Max Height | Max Area |
|---|---|---|---|---|
| EI (1) | 60 minutes | 4,000 mm | 4,500 mm | 10 m² |
| EI (2) | 90 minutes | 4,000 mm | 4,500 mm | 10 m² |
| EW | 90 minutes | 4,000 mm | 4,500 mm | 10 m² |
Optional Features
- Indoor/outdoor operation up to wind class 5 (>1,000 Pa)
- Burglar-resistant version (outside → inside) RC 2 or RC 3
- Sound Insulation: 30 dB or 32 dB
- High lift system for installation height from 1,500 mm
- Panels in RAL colour of choice (wet painting or wrap foil)
- Stand-alone smoke detector
- Various switch options
